00 · The Format
How Roast My Design Works
A structured peer review format where someone walks their colleagues through a real design - and their colleagues tell them, honestly, where they got it wrong.
Real code, real trade-offs, and a room full of people who've made the same mistakes.
The presenter learns what to fix. The audience learns what not to build.
Everyone leaves with something useful, eventually.
🤖 Disclaimer: All the roasts and "Actually Kinda Smart" takes that follow were written by the Bot.
The presenter provided the code. The Bot provided the dad jokes. Responsibilities are clearly divided.
🔥 Roast My Design · Reverse Wall of Shame
Reverse Wall of Shame
I built a leaderboard.
Then I over-engineered it.
An internal recognition platform for publicly celebrating the people who actually get things done - because someone has to, and it shouldn't happen quietly. This is the architectural post-mortem I'm proud of.
Click here to see the actual live site - dev-rws.endava-test-domain.be (accessible only from Endava internal network)
🔒 Admin panel screens — visible only to users with the Admin role. Click any thumbnail to zoom.

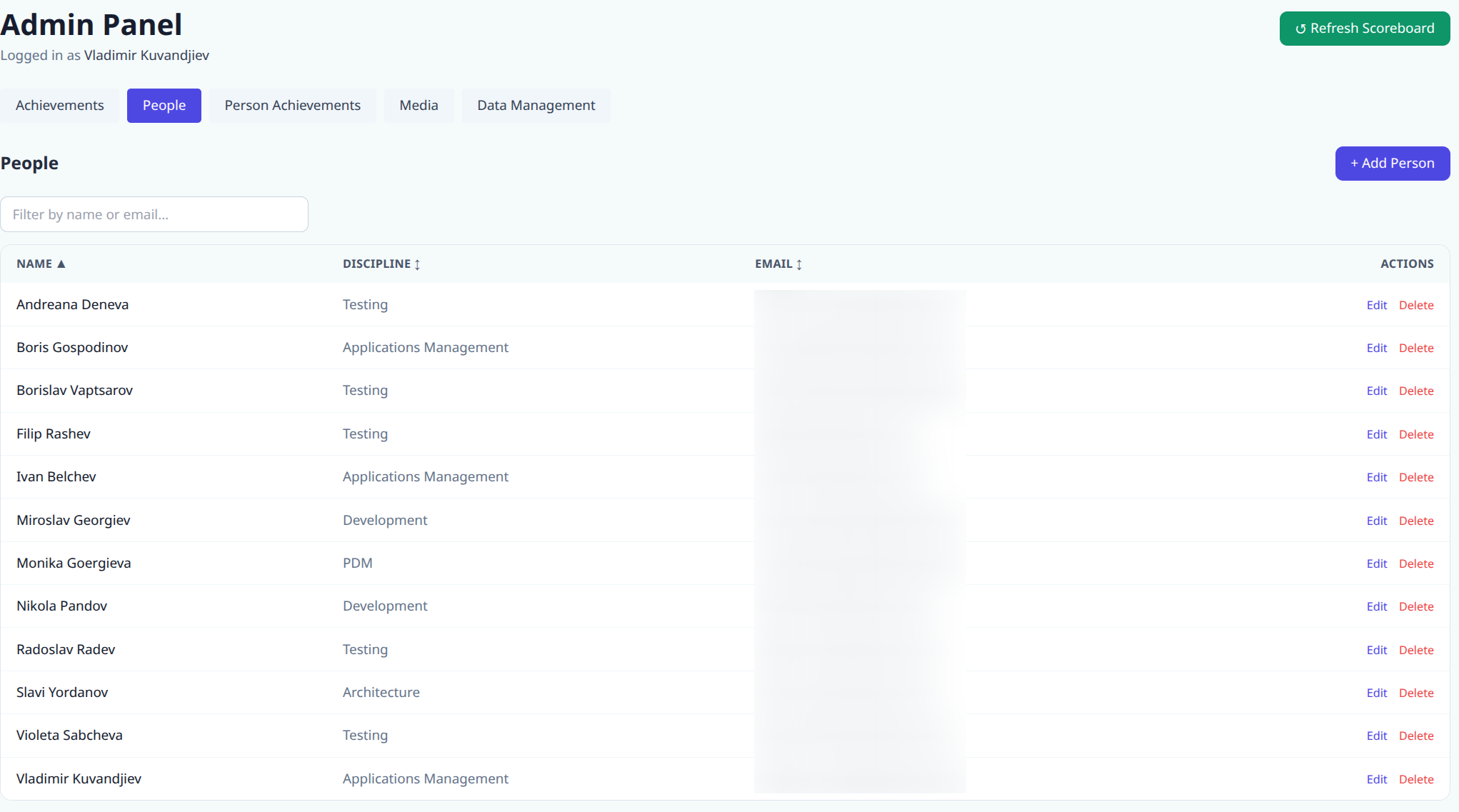

People

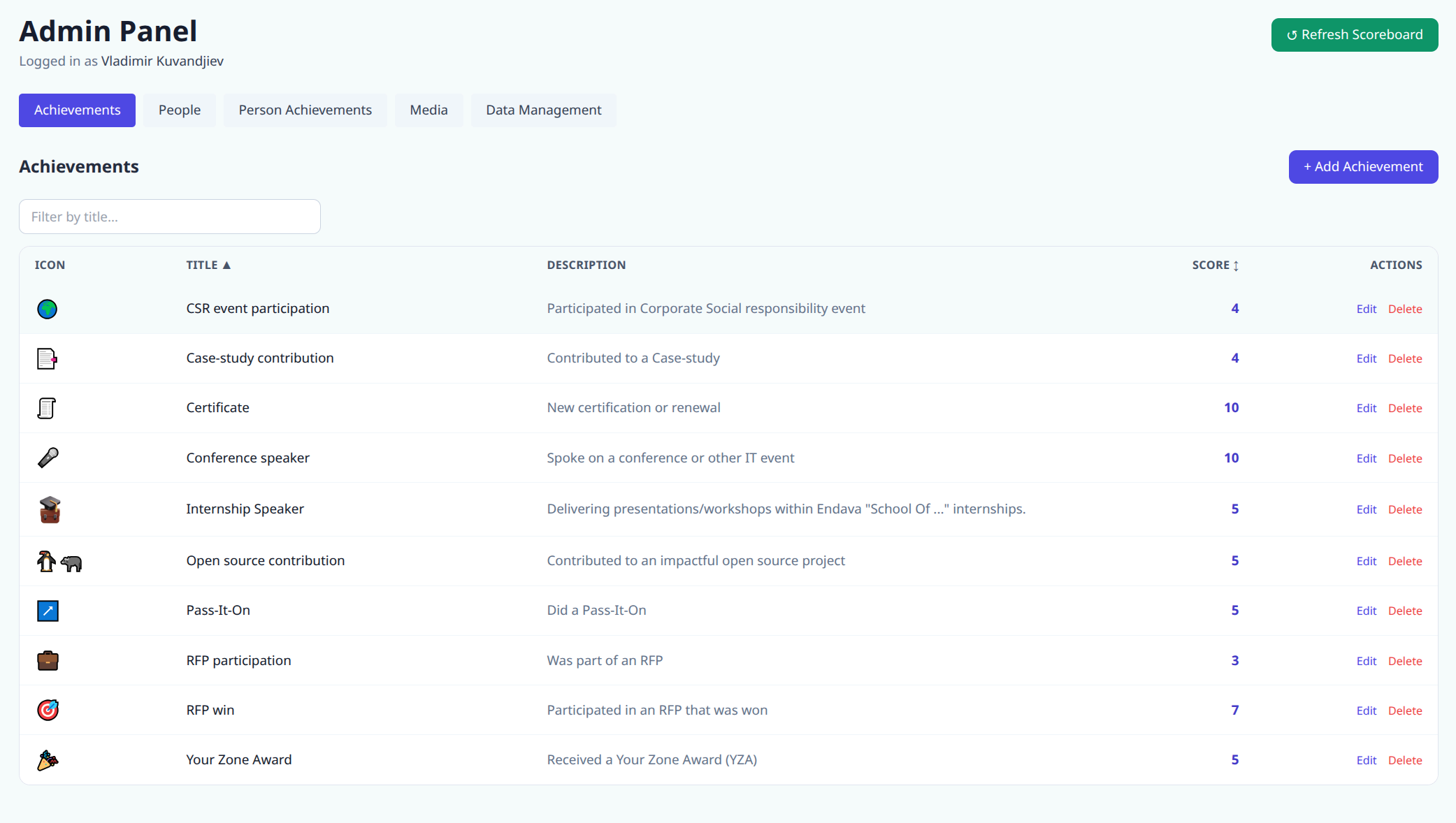

Achievements

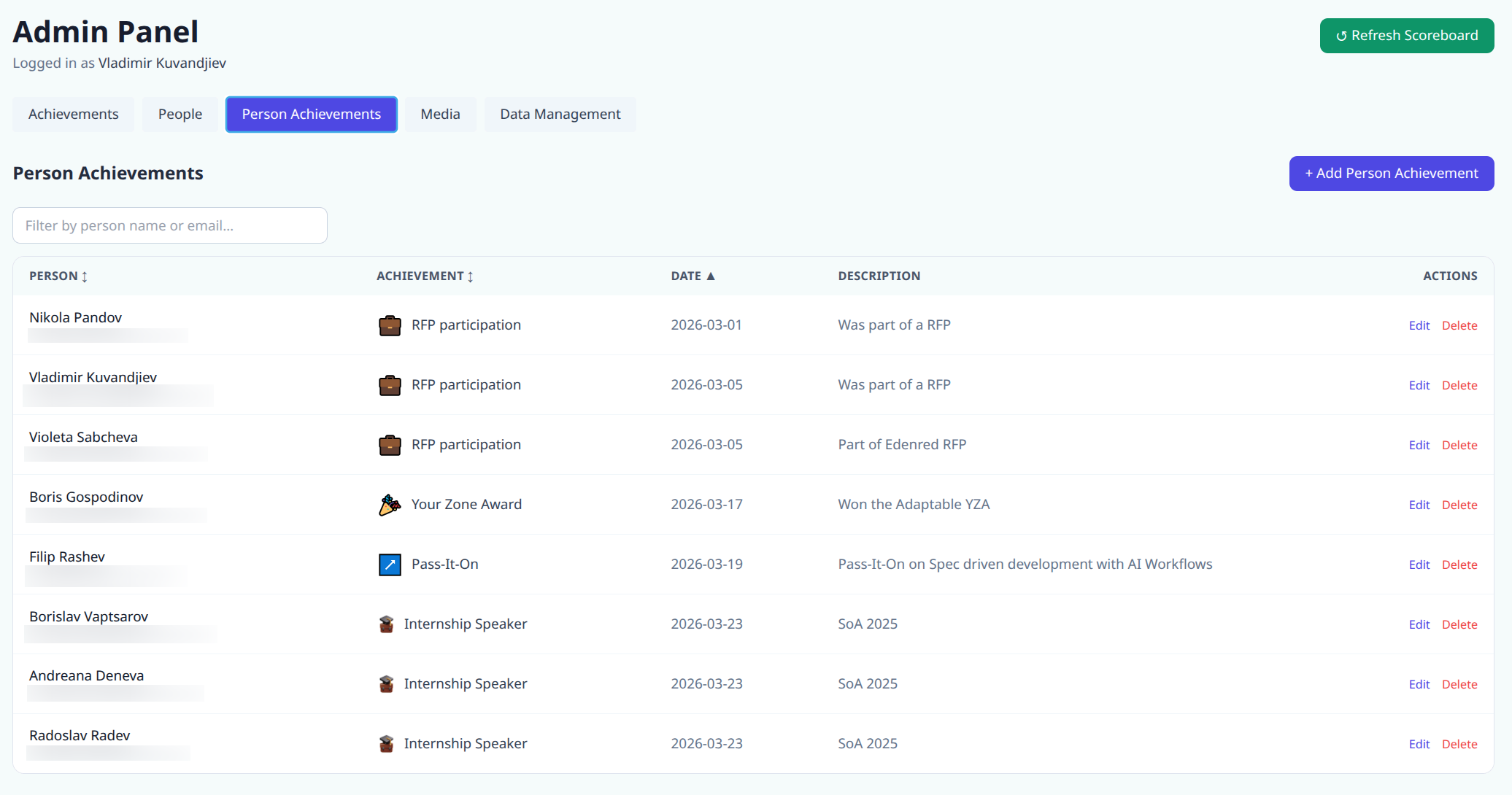

Person Achievements

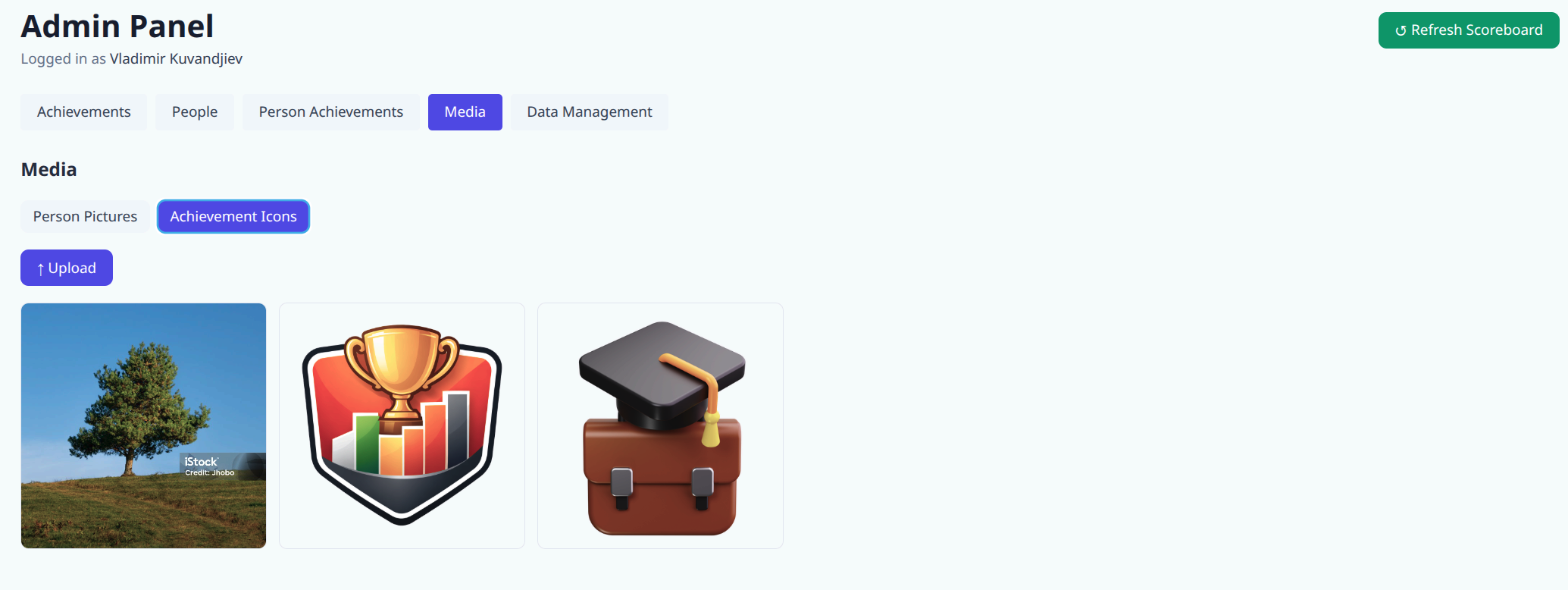

Media

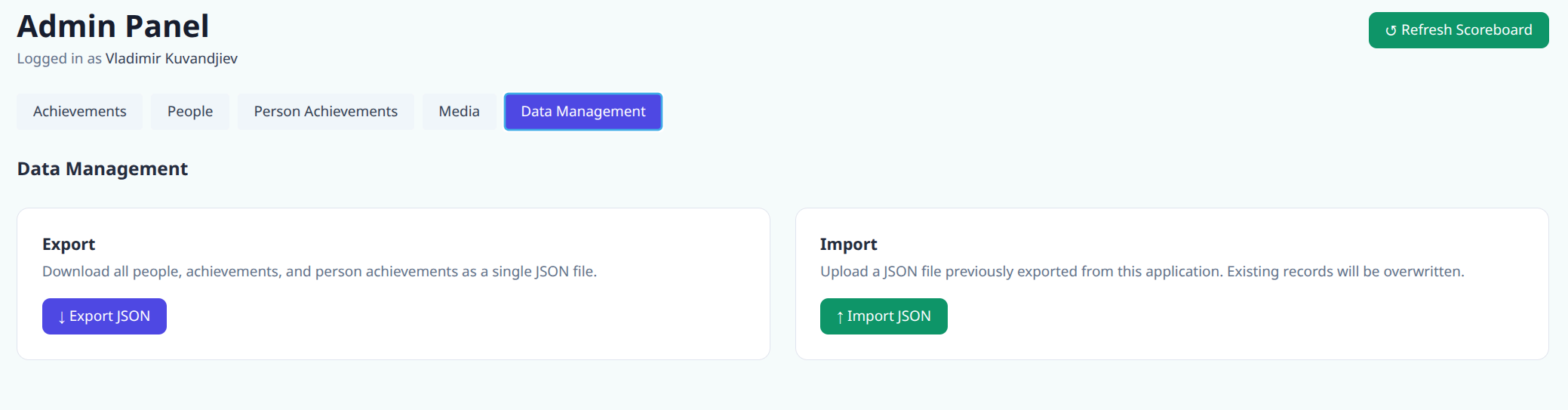

Data Management

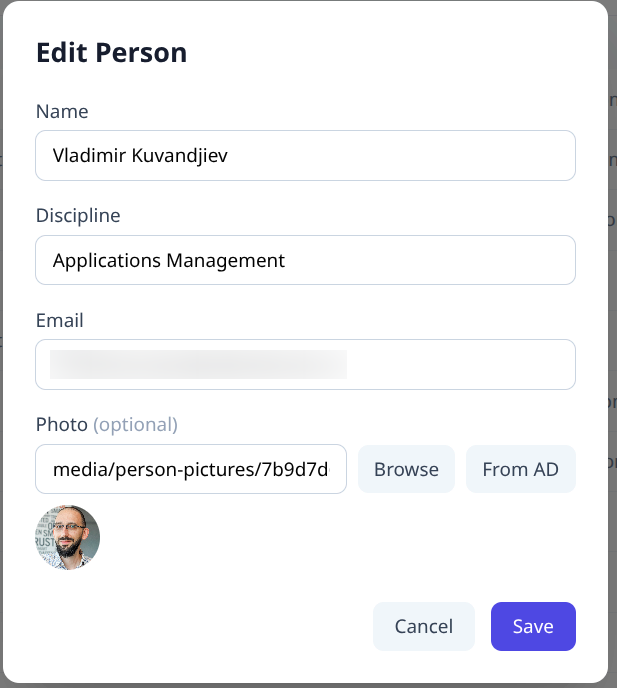

Edit Person

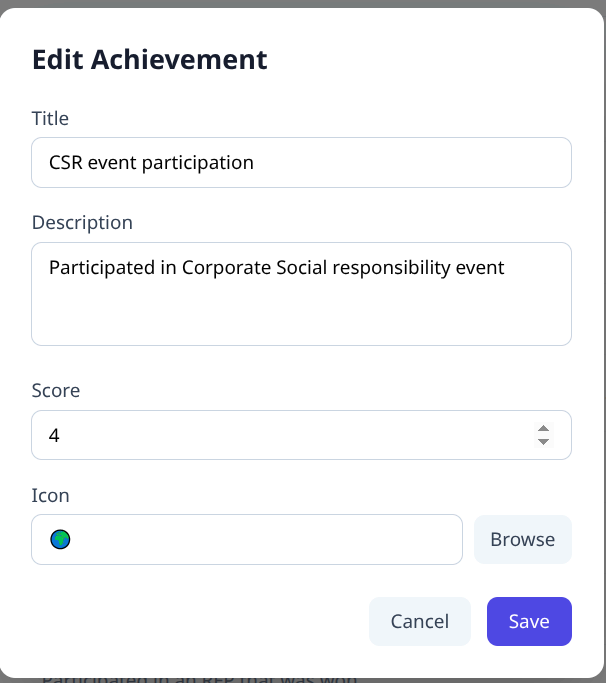

Edit Achievement

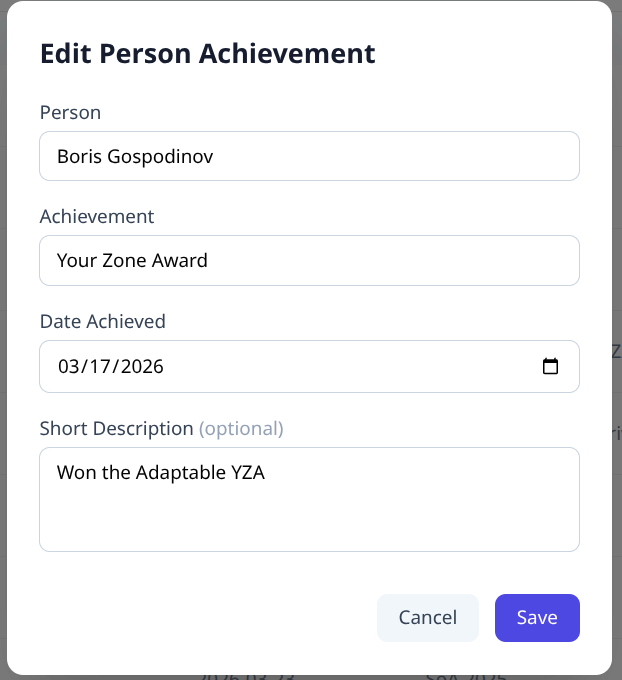

Edit Person Achievement
01 · Requirements
The Brief
"We want a Wall of Shame. But reversed. With achievements. And a carousel. And offline mode. And admin login. Oh, and it should be on the office TV." - Miro, at some point.
-
Core product
Public Scoreboard
Read-only leaderboard ranked by cumulative achievement score over a rolling 12-month window. No auth, no exposed emails.
-
Achievement Catalogue
Admins define achievements: title, description, numeric score, and icon. These are the units of recognition driving all scoring.
-
People Management
Name, discipline, unique email, optional photo. The roster of people who receive achievements and appear on the board.
-
Achievement Assignment
Assign any achievement to any person with a date and optional context. Same achievement can be received multiple times.
-
Mystery admins
Secure Admin Panel
All data modifications gated behind corporate SSO. Some know who the admins are. Classic power dynamic.
-
TV UX approved
Scoreboard Carousel
Full-screen presentation mode, cycles through people one at a time. Auto-activates after 30 seconds of idle display. Built for office TVs.
-
Apocalypse ready
Offline USB Export
Downloads the current scoreboard as a fully self-contained HTML file with base64-inlined images. Playable on a TV with no internet.
-
Auto Scoreboard Refresh
Regenerated automatically twice daily via a scheduled rule. Max staleness: 12 hours. Admins can also trigger on-demand.
-
Media Management
Upload, browse, and delete person photos and achievement icons. A media picker is embedded in the person and achievement forms.
-
Data Export & Import
Full database dump for backup or migration. Import accepts the same format the export produces. Full round-trip.
The Name
🔥 The Roast
"Reverse Wall of Shame" is just a leaderboard with extra steps and a name that requires
two seconds of explanation at every demo. Should have called it "the board".
🧠 Actually Kinda Smart
The name is the product. It inverts the shame narrative into recognition without sounding
like a corporate awards ceremony. Memorable, defensible, slightly smug - exactly right.
Offline USB Export
🔥 The Roast
A fully self-contained HTML file with base64-inlined images — in case the office loses
internet mid-ceremony and someone needs to plug in a USB stick. For a recognition board.
The threat model for this feature has never existed.
🧠 Actually Kinda Smart
The export implementation is genuinely clever: one HTTP call, one file, runs anywhere.
Conference rooms with locked-down networks, hotel TVs, laptops on a plane.
The use case is niche but the solution is zero-dependency portable HTML — hard to argue with that.
Scoreboard Carousel
🔥 The Roast
A full-screen cinematic presentation mode — for an office TV showing recognition scores.
Someone built a slide deck engine into a leaderboard. The TV has one job.
It does not need transitions.
🧠 Actually Kinda Smart
The TV is the product surface. If the scoreboard just sits there as a static list,
nobody reads it after day two. The carousel forces visibility — each person gets their
moment. That is the whole point of the board. Without the carousel, it is wallpaper.
Auto Scoreboard Refresh
🔥 The Roast
An EventBridge cron triggers SNS, which fans out to SQS, which invokes a Lambda,
which writes one JSON file — twice a day. That is a four-service distributed pipeline
to schedule a file write. A cronjob would have been three lines.
🧠 Actually Kinda Smart
The SQS queue serialises concurrent regeneration requests so two Lambdas never race on
the same S3 write. SNS means future consumers — Slack notifications, webhooks — can
subscribe without touching the generator. The DLQ auto-retries failures silently.
That is not over-engineering, that is the architecture doing its job.
Data Export & Import
🔥 The Roast
A full round-trip backup and restore pipeline — for an app that tracks who won a
"Best Commit Message" badge in Q3. The data loss risk here is reputational at best.
Nobody is calling the DBA at 2am over this.
🧠 Actually Kinda Smart
PITR covers infrastructure-level recovery, but environment migration — dev to prod,
org rebrand, new AWS account — requires a portable data format. The export/import
round-trip is the escape hatch that makes the system not hostage to its own DynamoDB tables.
You only need it once. When you need it, you really need it.
02 · Architecture Overview
The Big Picture
Serverless. Event-driven. Over-engineered in all the right ways. Here is what we are dealing with before we go into each discipline.
C1 · System Context
🔥 Core thesis: "Let's build a leaderboard using a full serverless event-driven AWS architecture - WAF,
KMS encryption at rest, PITR, OIDC federation, SNS fan-out, and a custom Lambda logging layer."
Nobody asked for that. Nobody said no. I proceeded.
Tech Stack
Backend
| Runtime | Python 3.14 |
| Web framework | FastAPI |
| ASGI adapter | Mangum |
| AWS SDK | boto3 |
| JWT validation | PyJWT[crypto] (authorizer) |
| Structured logging | rws-logger (custom Lambda layer) |
| Package management | uv - per-function virtual envs |
Frontend
| Framework | React 19 + TypeScript |
| Build tool | Vite |
| Auth | @azure/msal-browser + @azure/msal-react |
| Runtime config | window.__env__ via public/config.js |
Infrastructure
| IaC | OpenTofu |
| State backend | S3 (state + lock) |
| CI/CD | Azure DevOps Pipelines |
| AWS auth from CI | OIDC - sts:AssumeRoleWithWebIdentity |
The Scoreboard Regeneration Pipeline
Every time the scoreboard needs to be refreshed - scheduled or on-demand - this is the journey:
EventBridge
cron / admin click
SNS Topic
fan-out
SQS Queue
buffer + DLQ
Generator Lambda
concurrency = 1
S3 Write
scoreboard.json
CloudFront
cache invalidation
System Qualities
Scales to Zero
No idle servers. Lambda + DynamoDB on-demand. Pay per invocation.
Security in Depth
WAF IP allowlist · JWT auth · KMS everywhere · TLS 1.3 · PITR on all tables.
Resilient Read Path
CDN serves scoreboard.json even during a full Lambda + DynamoDB outage.
Observable
Structured JSON logs with correlation IDs propagated across every Lambda.
Independently Deployable
Every Lambda has its own bundle and deploy script. Infra managed separately.
API-First
OpenAPI spec is the documentation contract. JSON schemas live as versioned files.
Architectural Decisions & Trade-offs
1 · Multiple single-purpose Lambda functions instead of a monolith +
Each API resource group is a separate Lambda - independent deployment and isolated blast radius.
| ✅ Pros | ⚠️ Cons |
|---|---|
| Independent deployment and scaling per function | More IAM roles, env vars, deploy scripts to manage |
| Least-privilege IAM - each function only accesses the tables it needs | Cold start per function in low-traffic scenarios |
| Isolated blast radius - bug in export cannot affect achievements | Cross-cutting concerns (logging, CORS) must be layered |
2 · DynamoDB instead of a relational database +
Three tables: People, Achievements, PersonAchievements. No joins at query time.
| ✅ Pros | ⚠️ Cons |
|---|---|
| Fully serverless - no connection pooling, no schema migrations | No joins - scoreboard generator must batch-fetch all related records |
| Auto-scaling, built-in KMS encryption, PITR enabled out of the box | Query patterns must be designed upfront via GSIs |
| Pay-per-request pricing aligns with low-write workload | Unique email enforcement requires a conditional write |
3 · Pre-generated static scoreboard JSON +
Scoreboard is generated asynchronously and stored as scoreboard.json in S3 - no DB read at display time.
| ✅ Pros | ⚠️ Cons |
|---|---|
| Public endpoint requires no auth and no database read | Scoreboard is at most 12 hours stale without a manual regeneration |
| Survives a full backend outage (CDN continues to serve cached JSON) | Extra pipeline complexity (SNS, SQS, EventBridge, CloudFront invalidation) |
| Scales to thousands of simultaneous TV screens at no extra cost | Admin must trigger refresh explicitly to see changes immediately |
4 · SNS fan-out with SQS buffering for scoreboard generation +
EventBridge schedule and admin trigger both publish to SNS → SQS → Lambda generator.
| ✅ Pros | ⚠️ Cons |
|---|---|
| Future consumers (Slack, analytics) can subscribe to SNS without changing existing code | Additional infrastructure (SNS topic, SQS queue, subscriptions) |
| SQS + reserved concurrency = 1 prevents concurrent S3 writes | Adds a few seconds of latency compared to direct invocation |
| Automatic retry on generator failure via SQS re-delivery |
5 · API Gateway REST API (v1) over HTTP API (v2) +
REST API variant chosen despite HTTP API being cheaper.
| ✅ Pros | ⚠️ Cons |
|---|---|
| Native WAF integration (not available with HTTP API) | Roughly 3.5× higher per-request cost vs HTTP API |
| Per-stage method-level logging | More complex OpenTofu configuration |
| Richer Lambda Authoriser response (IAM policy document) |
6 · Microsoft Entra ID as the sole identity provider +
Admin auth fully delegated to Entra ID - no user table in the system.
| ✅ Pros | ⚠️ Cons |
|---|---|
| No credential storage, password policy, or MFA management in the app | Hard dependency on Microsoft - admin access breaks if Entra ID is unreachable |
| Enterprise SSO - admins use their existing corporate accounts | Requires Entra ID app registration per environment |
| Token revocation and conditional access handled by the IdP |
7 · Full infrastructure management in OpenTofu (including API Gateway routes) +
All infra - Lambda, IAM, WAF, ACM, Route53, API Gateway resources - managed from infra/. OpenAPI spec is documentation only.
| ✅ Pros | ⚠️ Cons |
|---|---|
| Single deployment pipeline for all infrastructure changes | API contract changes require an OpenTofu plan/apply cycle |
| No risk of drift between a separately deployed API and the infra state | API Gateway resource definitions live in HCL rather than the OpenAPI spec |
8 · Runtime frontend configuration - environment-agnostic builds +
Config values are not baked into the JS bundle - a config.js is uploaded to S3 at deploy time.
| ✅ Pros | ⚠️ Cons |
|---|---|
| Single build artifact can be deployed to any environment | Extra deploy step required to generate and upload config.js |
| Config changes do not require a rebuild | config.js must be served with no-cache to prevent stale values |
| Branch protection for prod enforced at deploy stage, not build |
9 · Open CORS on all Lambda APIs +
All Lambda functions configure FastAPI's CORS middleware to allow requests from any origin.
| ✅ Pros | ⚠️ Cons |
|---|---|
| Simplifies local development and cross-environment testing | Relaxed security posture - any origin can call the API |
| No need to update CORS config when the frontend domain changes | The WAF IP allowlist is the practical access control layer |
C2 · Container Diagram
The Scoreboard Pipeline
🔥 The Roast
You built a four-service enterprise event pipeline - EventBridge, SNS, SQS, reserved concurrency -
to generate one JSON file, twice a day. That is 730 executions per year.
The infra to support it probably costs more than the compute.
🧠 Actually Kinda Smart
SQS ensures only one generator runs at a time - no race conditions on the S3 write.
SNS lets future consumers (Slack notifications, webhooks) subscribe without touching existing code.
The DLQ means failed regenerations auto-retry. Reserved concurrency = 1 costs literally nothing extra.
DynamoDB over RDS
🔥 The Roast
Three tables. No joins. A scoreboard generator that has to batch-fetch every person,
every achievement, and every assignment separately - because someone said "NoSQL scales"
for an app that writes maybe 50 rows a month. A SQLite file on a Raspberry Pi would have been fine.
🧠 Actually Kinda Smart
No RDS instance means no idle compute, no connection pool to manage, no schema migration scripts.
Auto-scaling, KMS encryption, and PITR come free out of the box.
For a low-write workload the economics are genuinely better than provisioned RDS.
The batch-fetch cost is paid once per regeneration, not per page load.
REST API v1 over HTTP API v2
🔥 The Roast
Chose the API Gateway variant that costs 3.5 times more per request - for an internal tool
behind a WAF that already blocks 99% of traffic. The audience is literally six admins
and a TV. The cheaper API would have handled that without breaking a sweat.
🧠 Actually Kinda Smart
HTTP API v2 cannot integrate with WAF. The WAF is not optional - it is the IP allowlist
that keeps the API private. REST API v1 was the only path to native WAF integration
without a CloudFront workaround. The price delta on near-zero traffic is cents per month.
KMS Everywhere
🔥 The Roast
Customer-managed KMS keys for DynamoDB, SSM, Lambda environment variables, and CloudWatch Logs -
on an app that stores people's names, job titles, and badge icons.
The threat model here is a disgruntled AWS employee with root access.
Nobody else is getting at this data.
🧠 Actually Kinda Smart
Checkov fails the plan without customer-managed keys on these resources.
The pipeline enforces it. The cost is minimal and the audit trail is real.
Security controls that are cheap to implement should be implemented - the point is building
the habit, not protecting secrets that do not exist yet.
Open CORS
🔥 The Roast
CORS is set to allow any origin across all Lambda functions.
The official justification is "the WAF handles it".
The WAF is an IP allowlist. The CORS header is sent after the WAF lets you through.
At that point, any browser tab on an allowed IP can call the API. Intentional, but worth naming.
🧠 Actually Kinda Smart
Local development, staging, and prod all share the same Lambda bundle.
Locking CORS to a specific origin means updating config for every environment change
and every domain rename. The WAF IP restriction is the meaningful access boundary here.
Open CORS behind a strict WAF is a deliberate layered posture, not a shortcut.
03 · Development - Backend
Nine Functions Walk Into a Bar
Each one orders a different drink, has its own IAM role, its own virtual environment, and absolutely refuses to share a deployment pipeline with anyone.
Tech Stack
| Concern | Technology |
|---|---|
| Runtime | Python 3.14 |
| Web Framework | FastAPI |
| ASGI → Lambda Adapter | Mangum |
| AWS SDK | boto3 |
| JWT Validation | PyJWT[crypto] (authorizer only) |
| Structured Logging | rws-logger - custom Lambda layer |
| Package Management | uv - per-function virtual environments |
| Dependency Declaration | pyproject.toml with [dependency-groups] |
The Lambda Fleet
Lambda Authorizer
Validates Entra ID JWT Bearer tokens. Fetches JWKS (cached). Returns IAM Allow/Deny policy to API GW.
→ all protected routes
Achievements
CRUD for the achievement catalogue. Blocks deletion when referenced by a PersonAchievement.
/achievements
People
CRUD for the people roster. Unique email enforced via DynamoDB GSI + conditional write.
/people
Person Achievements
CRUD for assignment records (person · achievement · date · context).
/person-achievements
Scoreboard Trigger
Publishes a refresh event to SNS. That is literally the entire function.
/scoreboard/trigger
Scoreboard Generator
Reads all three DynamoDB tables, builds scoreboard.json, writes to S3, invalidates CloudFront.
SQS / EventBridge
Data Export
Full DynamoDB scan. Returns JSON dump of all people, achievements, and assignments.
/export
Data Import
Accepts the export format. Batch-writes all records to all three DynamoDB tables.
/import
Media
Upload/list/delete images. Magic-byte validation. Scoped strictly to the
media/ S3 prefix./media
C3 · Backend Lambda Functions
rws-logger - Because console.log is for Quitters
A custom Lambda layer published to AWS Lambda Layers and as a private package on AWS CodeArtifact.
Every Lambda imports it. Every log entry gets:
timestamp · level · message · correlationId.
The correlation ID is extracted from the API Gateway event and propagated across the full request lifecycle.
The logger has its own independent unit test suite.
Backend Unit Tests
Each Lambda has an independent test suite co-located in its own tests/ directory
with its own uv virtual environment. Tests run as a quality gate before bundling.
Test Tooling
pytest | Test runner and assertions |
moto | AWS service mocking (DynamoDB, S3, SNS, SQS, SSM) |
httpx | FastAPI TestClient transport |
freezegun | Time freezing for scoreboard window tests |
unittest.mock | Patching boto3 and urllib calls |
Mocking strategy: AWS via
moto @mock_aws. DynamoDB tables are created
in fixtures with the same GSIs as production. The authorizer patches at the lowest viable level
so _get_config and _get_jwks are actually executed and covered -
not just mocked away. No real AWS calls. Ever.
Coverage target - all Lambda functions
≥ 90% - enforced as a CI quality gate before bundling
FastAPI + Mangum
🔥 The Roast
A full async web framework with request validation, serialisation, and automatic OpenAPI docs -
inside a Lambda that handles maybe 20 requests a day from six admins.
A racing engine in a bicycle. The bicycle has a custom exhaust pipe (rws-logger).
🧠 Actually Kinda Smart
FastAPI gives free request validation, automatic 422 errors, and a local dev server.
Mangum is a 3-line ASGI adapter. Run uvicorn handler:app locally and Lambda
doesn't exist. The cold-start overhead is negligible. The DX gain is not.
DynamoDB - No Joins, No Problem
🔥 The Roast
Three tables. No joins. The scoreboard generator batch-fetches People, Achievements, and
PersonAchievements separately, then stitches them together in Python.
You invented a manual JOIN and called it "aggregation" in the docs.
🧠 Actually Kinda Smart
Fully serverless, auto-scaling, KMS-encrypted, PITR out of the box. No connection pooling,
no schema migrations - ever. Pay-per-request is cheap for a low-write workload.
The batch-fetch runs once per regeneration, not per page load.
The Scoreboard Trigger Lambda
🔥 The Roast
A dedicated Lambda function whose entire body is one SNS publish() call.
It has its own IAM role, its own pyproject.toml, its own virtual environment,
its own deploy script, and its own test suite. For one line of business logic.
🧠 Actually Kinda Smart
Separation of concerns: the HTTP trigger and the generation work are independently deployable.
The trigger Lambda can be replaced, versioned, or removed without touching the generator.
The IAM boundary means the admin-facing endpoint cannot access DynamoDB at all.
One line of business logic, zero blast radius.
rws-logger - Custom Logging Layer
🔥 The Roast
A custom Python Lambda layer, published to CodeArtifact, with its own test suite,
just to add a correlationId field to log lines.
CloudWatch can filter by request ID natively. This solved a problem that did not exist
and then got its own CI pipeline.
🧠 Actually Kinda Smart
The correlation ID propagates the API Gateway request ID across every Lambda in a chain -
not just the one that received the HTTP call. CloudWatch's built-in request ID only covers
the entry Lambda. Structured JSON means logs are queryable with CloudWatch Insights
without parsing free-text strings. The layer costs nothing to run and everything to not have
when you're debugging a silent failure at 2am.
Magic-Byte Validation in the Media Handler
🔥 The Roast
The media upload endpoint reads the first bytes of every file to validate the magic signature
before accepting it. For an internal admin tool where the uploaders are the same six people
who can already read the source code. The threat model is a very confused colleague.
🧠 Actually Kinda Smart
MIME-type spoofing via file extension is trivial. Magic-byte validation catches it at the
Lambda level before the file ever reaches S3. The WAF does not inspect request bodies.
The check is three lines. The habit of validating untrusted input regardless of who's
sending it is the right one to build - even when the sender is yourself.
Per-Function Virtual Environments
🔥 The Roast
Nine Lambda functions. Nine pyproject.toml files. Nine uv virtual
environments. Nine bundle scripts. If you need to update a shared dependency you touch nine
files. This is distributed monorepo pain with extra steps.
🧠 Actually Kinda Smart
Each Lambda's bundle contains only what it needs - no shared bloat inflating cold-start times.
A breaking change in one function's dependencies cannot silently affect another.
uv makes virtual env creation fast enough that the overhead is seconds, not minutes.
The pain of updating nine files is the cost of true isolation. It has paid off exactly once
already - when boto3 was bumped in one function without touching the authorizer.
04 · Development - Frontend
One React App. Many Opinions.
React 19. TypeScript. Vite. MSAL. And a window.__env__ injection scheme
that sounds like a hack until you hear the reasoning - and then it sounds like a hack you would do again.
Tech Stack
| Concern | Technology |
|---|---|
| Framework | React 19 + TypeScript |
| Build Tool | Vite |
| Authentication | @azure/msal-browser + @azure/msal-react |
| Runtime Config | window.__env__ via public/config.js injected at deploy time |
Key Components
ScoreboardPage
Public entry point. Ranked table, carousel trigger, offline export button.
AdminPage
Tabbed interface: Achievements, People, Person Achievements, Media, Data Management.
useScoreboard
Fetches
scoreboard.json from the CDN. Builds ranked ScoreboardEntry list client-side.useCarouselTimer
State machine: 30s idle → carousel mode. Configurable timeouts from
window.__env__.CarouselView
Full-screen dark overlay. Cycles through people every 6s. CSS slide-in/slide-out animations.
ProtectedRoute
Guards admin routes. Checks active MSAL account. Redirects to scoreboard if absent.
api.ts
Thin fetch wrapper. Attaches JWT Bearer token to every admin API request automatically.
exportScoreboard
Collects CSS, base64-encodes all images, inlines carousel JS. Downloads as
scoreboard.html.MediaPickerModal
Browse or upload media. Embedded in achievement and person forms.
C3 · React SPA Components
Frontend Unit Tests
Test Tooling
Vitest | Test runner and assertions |
@testing-library/react | Component rendering, semantic queries |
@testing-library/user-event | Realistic user interactions |
vi.mock / vi.spyOn | Module and function mocking |
vi.stubEnv | Environment variable stubbing |
Coverage exclusions:
useAuth.ts (MSAL popup - untestable in jsdom),
App.tsx (Router wiring, tested via E2E),
main.tsx (entry point, no logic),
config.ts (window.__env__ is runtime-only).
All exclusions are documented and justified.
Coverage target - lines / functions / branches / statements
≥ 90% - enforced before the Vite bundle is produced
The Runtime Config Trick
🔥 The Roast
Instead of a .env file like a normal person, the deploy step generates config.js,
uploads it to S3, and the page loads it at runtime via window.__env__.
Environment variables: one weird trick. The React app reads globals off window like it's 2012.
🧠 Actually Kinda Smart
One build artifact, any environment - no rebuild for a config change.
Branch protection enforced at deploy time, not build time.
config.js is served with no-cache so stale config is structurally impossible.
The window global is typed and read through a single config.ts module - not scattered across the app.
Carousel + State Machine
🔥 The Roast
A useCarouselTimer hook with a 30-second idle state machine, configurable timeouts
read from window.__env__, and CSS slide-in/slide-out animations.
For a TV. That someone walks past. Once a day. The TV does not care about transitions.
🧠 Actually Kinda Smart
The carousel is the entire UX on a display nobody touches. Without it the board is a static
list and nobody reads it after day two. The idle timer and configurable timeouts mean it works
in any room layout without a code change. The animations are the difference between a
dashboard and a PowerPoint slide.
Offline Export
🔥 The Roast
The export function fetches all scoreboard data, base64-encodes every image,
inlines the carousel JS, and emits a single self-contained scoreboard.html.
A bespoke static site generator - for a leaderboard that already has a live URL.
🧠 Actually Kinda Smart
Conference rooms have projectors and no Wi-Fi. USB-booted TVs exist.
One click, one file, zero dependencies. The base64 inlining means images never break
on an air-gapped screen. The carousel works offline too - it is all inlined.
The feature is a single function. The value is disproportionate to the effort.
MSAL in a React SPA
🔥 The Roast
@azure/msal-browser + @azure/msal-react for an admin panel
with maybe three active users. The authentication library is roughly the same size
as the rest of the app combined. The login button triggers a Microsoft popup.
For a leaderboard admin.
🧠 Actually Kinda Smart
The company already uses Entra ID. There is no credential management to build,
no password reset flow, no MFA to implement - it all comes from the IdP.
MSAL handles token refresh, expiry, and silent re-authentication automatically.
The popup is one line. The alternative is building auth from scratch.
React 19 for an Internal Tool
🔥 The Roast
React 19. The newest major version, released months before this was built.
An office recognition board is now running on the bleeding edge of the most popular
frontend framework in the world. This is not a risk assessment. This is a flex.
🧠 Actually Kinda Smart
Low-stakes internal tooling is exactly where you should use new technology.
If something breaks, six admins notice. React 19's improvements to the rendering model
and the compiler are real. The upgrade path from 18 is smooth.
The risk-reward here is correct.
useAuth.ts Excluded from Coverage
🔥 The Roast
The hook that handles the MSAL popup login flow is excluded from the 90% coverage gate
because it cannot be tested in jsdom. The most security-critical path in the app
has zero unit test coverage. The coverage badge is technically accurate.
🧠 Actually Kinda Smart
MSAL's popup flow requires a real browser window - jsdom cannot simulate it.
The exclusion is documented and justified, not hidden. The E2E tests on Port 5173
exercise the full MSAL init flow via intercepted OIDC responses.
The coverage gap is real but the testing gap is not.
05 · Testing - E2E
The Parallel Universe Where Auth Doesn't Exist
Playwright, Chromium, two Vite servers running simultaneously, and a complete network-level impersonation of Microsoft's identity platform. All for a leaderboard.
Two-Server Setup
Port 5173 - No Bypass
Real MSAL, but
login.microsoftonline.com is intercepted via page.route()
and returns stubbed OIDC discovery responses. Tests: auth flow, scoreboard display, carousel.
Microsoft never receives a real network call.
Port 5174 - Auth Bypass
VITE_E2E_BYPASS_AUTH=true makes ProtectedRoute render unconditionally.
Tests: all admin screens (achievements, people, person achievements, media).
API responses mocked at network level via page.route(). No live backend needed.
Admin API Mocking Pattern
await page.route(
(url) => url.pathname.includes('/achievements'),
async (route) => {
if (route.request().method() === 'GET') {
await route.fulfill({ contentType: 'application/json', body: JSON.stringify(MOCK_DATA) })
} else {
await route.fallback()
}
},
)
All admin E2E tests own their own truth. Fully deterministic. No live backend. No surprise API changes breaking your E2E suite at 2am.
CI Behaviour
⚠️ E2E tests are intentionally not a build gate.
They run in a separate, manually-triggered pipeline.
Rationale: Playwright + network-level mocking + timing sensitivity = occasional false negatives
that should not block fast feedback on code changes.
Two Vite Servers, Two Realities
🔥 The Roast
Two Vite dev servers launched in parallel: one where Microsoft Entra ID is intercepted
at the network layer and replaced with stubs, and one where authentication does not exist at all.
Two parallel universes with different laws of physics - for a leaderboard.
🧠 Actually Kinda Smart
Admin tests need authenticated state but CI cannot use real Entra ID credentials.
The bypass server is isolated - VITE_E2E_BYPASS_AUTH=true is a build-time flag
that cannot reach production builds. The no-bypass server still exercises the full MSAL init flow.
Two servers, two coverage domains, zero real Microsoft calls.
Faking Microsoft at the Network Layer
🔥 The Roast
page.route() intercepts calls to login.microsoftonline.com and returns
hand-crafted OIDC discovery responses and fake JWT tokens. You have written a partial clone
of Microsoft's identity platform in 50 lines of Playwright fixture code. For a leaderboard.
🧠 Actually Kinda Smart
The alternative is a test account in a real Entra ID tenant - credentials in CI, rotation policy,
MFA edge cases, and a dependency on Microsoft's uptime during your test run.
The stub is deterministic, offline, and never expires. It tests exactly what needs testing:
that MSAL receives a valid-looking token and lets the user through.
All API Responses Mocked
🔥 The Roast
Every admin E2E test mocks every API call via page.route().
The E2E suite never touches the actual backend. Technically these are integration tests
dressed in Playwright's clothing. The "E2E" in the name is doing a lot of work.
🧠 Actually Kinda Smart
A live backend in E2E means flaky tests, state pollution between runs, and a dependency
on whatever is deployed. Network-level mocking gives full control over every response,
including errors, empty states, and pagination edge cases. The tests are deterministic
by design. The coverage is real even if the backend is not.
E2E Not a Build Gate
🔥 The Roast
The E2E suite is manually triggered and intentionally excluded from blocking the build.
The official reason is "timing sensitivity". The actual reason is that Playwright tests
are hard to make perfectly stable and someone made the pragmatic call to not let
a flaky carousel animation test block a hotfix deploy.
🧠 Actually Kinda Smart
Flaky E2E tests as a hard gate are worse than no gate - they train engineers to
ignore failures and re-run until green. A separate, manually-triggered pipeline with
retries: 2 and workers: 1 is slower but trustworthy. The HTML report is always published.
The tests are run, just not as a blocker. That is a deliberate trade-off, not laziness.
Playwright on Docker Ubuntu for a Vite Dev App
🔥 The Roast
The E2E pipeline spins up a Docker container on Ubuntu 25.10, installs Chromium,
starts two Vite dev servers, and runs Playwright - against a development build of a
React app that serves a recognition leaderboard. The infrastructure-to-feature ratio
is heroic.
🧠 Actually Kinda Smart
A dev server is the fastest reproducible target - no S3 sync, no CloudFront cache,
no deploy step. Docker ensures the browser, Node version, and OS are identical in CI
and locally. Ubuntu 25.10 is the latest LTS-adjacent release with the most current
Playwright browser binaries. The setup is correct, even if the application under
test is a scoreboard.
06 · DevOps
Two Clouds. One Project. Zero Static Credentials.
Azure DevOps for pipelines. AWS for everything else. OpenTofu for infrastructure. OIDC federation so there is not a single access key stored anywhere.
Pipeline Architecture
Infrastructure Pipeline
Manual trigger.
tofu init → tofu plan → Checkov security scan →
manual approval gate → tofu apply (exact plan, no drift).
Branch-protected for prod. Artifact-based apply: what was reviewed is what is deployed.
Lambda Build Pipeline
Auto-triggered on push (path-filtered to function directory).
Unit tests as quality gate → bundle → publish artifact.
Separate manual deploy step promotes the artifact to any environment without rebuilding.
Frontend Pipeline
Auto-triggered on push. TypeScript check → Vitest coverage → Vite bundle.
Deploy: generate
config.js, sync dist/ to S3, CloudFront invalidation.
Branch-protected for prod.
E2E Pipeline
Manually triggered. Playwright Chromium.
HTML report published as a pipeline artifact regardless of outcome.
Not a build gate - intentionally.
AWS Infrastructure · eu-west-2
Security Posture
WAF IP Allowlist
Blocks all traffic by default. Allows only known IP ranges. The practical access control layer for the public API.
KMS Everywhere
DynamoDB · SSM SecureStrings · Lambda env vars · CloudWatch Logs - all encrypted with customer-managed KMS keys.
PITR on All Tables
35-day point-in-time recovery window on every DynamoDB table. Not just the important ones.
TLS 1.3
Security policy enforced on the API Gateway custom domain. Minimum version, not negotiable.
Checkov Scans
HCL and plan JSON scanned on every infrastructure pipeline run. Policy failures block deployment.
No Stored Credentials
OIDC short-lived tokens from ADO to AWS. Zero access keys in any pipeline variable group.
SCA - Vulnerability Scanning
Every backend Lambda project and the frontend ship a scan_vulnerabilities.sh script.
Runs Snyk CLI SCA against the full locked dependency tree, including dev deps.
🐍 Backend (per Lambda)
| Isolated venv | uv venv .snyk_venv with pip seeded |
| Install deps | UV_PROJECT_ENVIRONMENT=.snyk_venv uv sync --dev |
| Export deps | uv export --dev → requirements-exported.txt |
| Scan | snyk test --command=.snyk_venv/bin/python |
| Cleanup | trap cleanup EXIT - removes venv + txt on exit |
⚛️ Frontend (npm)
| Install | npm ci - syncs node_modules with lock file |
| Scan | snyk test --file=package.json |
⚙️ Environment Variables
SNYK_TOKEN | Required - Snyk API token |
SEVERITY_LEVEL | Default: high |
PYTHON_VERSION | Default: python3.14 (backend only) |
OpenTofu - Not Terraform
🔥 OpenTofu manages everything: DynamoDB tables, Lambda functions, IAM roles, WAF ACLs,
ACM certificates, Route53 records, API Gateway resources, methods, integrations, the authorizer,
SQS queues, SNS topics, EventBridge rules, and KMS keys.
The OpenAPI spec is the documentation contract - the actual API is deployed by OpenTofu.
You made a deliberate choice: one source of truth for deployment.
Two Clouds, One Project
🔥 The Roast
Microsoft for CI/CD, Amazon for compute. Two billing departments, two CLIs, two sets of IAM concepts,
two support contracts, and an architecture diagram that requires a legend.
Why pick one cloud when you can explain both at every job interview?
🧠 Actually Kinda Smart
ADO was already running for source control and project management - the switch cost was zero.
OIDC federation bridges them without storing a single AWS credential anywhere.
Short-lived tokens via sts:AssumeRoleWithWebIdentity mean no rotation calendar,
no leaked key incidents, and no 3am Slack messages about compromised access keys.
OpenTofu Manages Everything
🔥 The Roast
API Gateway routes, methods, integrations, the authorizer, WAF rules, KMS keys, Route53 records -
all declared in HCL. Every new API endpoint requires an OpenTofu plan/apply cycle.
The OpenAPI spec exists purely as documentation that is structurally forbidden from being the truth.
🧠 Actually Kinda Smart
One source of truth for deployment means no drift between a separately deployed API spec
and the actual infra state. Every change goes through plan → Checkov → manual approval → apply.
The API contract is version-controlled, reviewable, and auditable.
The pain of HCL-defined routes is the price of that guarantee.
Artifact-Based Deploy - Build Once, Deploy Anywhere
🔥 The Roast
The build pipeline produces an artifact. A separate manual deploy step promotes that artifact
to an environment. Two pipeline runs to get code to prod. The CD in CI/CD is doing
less work than the name implies.
🧠 Actually Kinda Smart
What was reviewed in the plan is exactly what is applied - no rebuild, no code change between
approval and execution. Promoting the same artifact to staging and then prod means
the thing that was tested is the thing that ships. The manual gate is deliberate:
infra changes deserve a human in the loop.
Checkov on Every Infrastructure Run
🔥 The Roast
Checkov scans the HCL and the plan JSON on every infrastructure pipeline run for a
leaderboard that stores names and badge icons. The security scanning infrastructure
is more sophisticated than the data being protected.
🧠 Actually Kinda Smart
Checkov is what enforces the customer-managed KMS keys, the PITR settings, and the
access logging that would otherwise be easy to skip on a low-stakes project.
Policy-as-code means the security posture is reproducible and auditable.
It runs in seconds. There is no good reason not to have it.
Snyk SCA on Every Lambda
🔥 The Roast
Nine Lambda functions. Nine scan_vulnerabilities.sh scripts. Each one creates
an isolated venv, installs all dev dependencies, exports them, runs Snyk, and cleans up.
Vulnerability scanning for a leaderboard's dependency tree. The CVE risk here is theoretical.
🧠 Actually Kinda Smart
The scan runs against the full locked dependency tree including dev deps - not just
the production bundle. Vulnerabilities in build tools matter too.
The trap cleanup EXIT pattern means a failed scan never leaves a venv behind.
This is the kind of operational hygiene that is cheap to add early and expensive to retrofit.
07 · AI
Built With AI
This project was built with AI assistance throughout - not just for boilerplate, but for architecture discussions, test generation, documentation, and the presentation you're reading right now. Here's an honest breakdown of what that looked like.
🛠 Tools Used
Windsurf — Agentic Mode
AI coding agent running autonomously: multi-step tasks, file edits, terminal commands, and iterative reasoning without manual steering.
IntelliJ IDEA + Windsurf Plugin
IDE of choice. Windsurf runs as an IntelliJ plugin, keeping the full IDE experience while giving the agent access to the workspace.
LLM: Claude Sonnet 4.6 Thinking
Extended thinking model powering the agent. Used for architecture decisions, code generation, documentation, and the roasts in this presentation.
⚡ The Accelerator Template
One side-effect of building this project with AI was extracting the architectural pattern - Lambda + API Gateway backend, S3 + CloudFront frontend, OpenTofu infra, Azure DevOps pipelines. So I created a reusable reference library that an AI agent can read at the start of a new project and immediately know how to build the whole stack from scratch, almost correctly, without being told too many times.
The template consists of four reference guides plus an entry-point file that explains how they connect:
🤖 bot-entry.md
The entry-point file. Explains how the four reference guides connect, when to use each,
and the conventions an AI agent should follow when bootstrapping the stack from scratch.
🏗️ AWS API Gateway + Lambda
How to define the backend in OpenTofu: a reusable Lambda module, shared KMS key, per-function
IAM policies, and a REST API Gateway with TOKEN authorizer, Lambda proxy integrations, and CORS.
One module call per function - no Lambda resources defined outside it.
☁️ CloudFront + S3 Frontend
How to define the frontend in OpenTofu: a private S3 bucket (SSE-KMS via Origin Access Control),
a WAF Web ACL with IP allowlist, CloudFront distribution with security response headers,
ACM certificates (in
us-east-1), and Route 53 alias records for both the
frontend and API Gateway domains.
🚀 Infra CI/CD Pipeline (OpenTofu)
The four-stage infrastructure pipeline: Plan → Scan (Checkov) → Manual Approval → Apply.
Covers the OIDC federation setup (
iam_oidc.tf) that lets Azure DevOps assume
an AWS IAM role without storing any static credentials. All pipelines use short-lived
STS tokens scoped to the job.
📦 Workload CI/CD Pipelines (Lambda + SPA)
Build and deploy pipelines for Lambda functions and the frontend SPA. Covers unit tests as a
quality gate, SCA vulnerability scanning, artifact bundling, and deployment to AWS.
Includes reusable ADO template steps and the shell scripts (
bundle.sh,
deploy.sh, run_unittest.sh, scan_vulnerabilities.sh)
each service uses. Also covers the shared Python library / Lambda layer publish pattern
via AWS CodeArtifact.
The idea in one sentence:
Give an AI agent these four files at the start of a new project and it can bootstrap the
entire AWS + Azure DevOps stack - correctly, securely, and consistently - without being walked
through it step by step each time.
